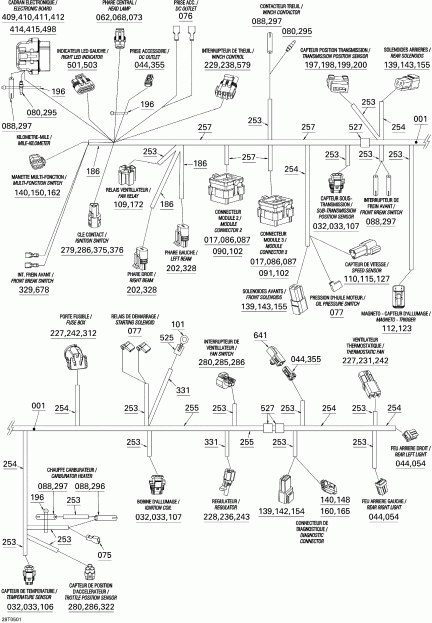

Раздел: Электрика - жгут проводов, Рама | Electrical Harness, Frame

Жгут проводов в сборе. Includes 001 to 678 (Harness Assy. Includes 001 to 678)

Провод Сальник (Wire Seal)

Female Клемма (Female Terminal)

(последний код) Female Клемма (Female Terminal)

Провод Сальник (Wire Seal)

Female Клемма 16-20 Awg (Female Terminal 16-20 Awg)

Female Корпус (3 Circuits) (Female Housing (3 Circuits))

Female Клемма (Female Terminal)

Female Корпус (2 Circuits) (Female Housing (2 Circuits))

(последний код) Female Корпус (2 Circuits) (Female Housing (2 Circuits))

Провод Сальник (Wire Seal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Male Клемма (Male Terminal)

(последний код) Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

(последний код) Female Клемма (Female Terminal)

Male Клемма Корпус (26 Circuits) (Male Terminal Housing (26 Circuits))

Male Клемма Корпус (26 Circuits) (Male Terminal Housing (26 Circuits))

Open Barrel (Open Barrel)

(последний код) Open Barrel (Open Barrel)

Сальникing Колпачок (Sealing Cap)

Male Клемма Корпус (2 Circuits) (Male Terminal Housing (2 Circuits))

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Female Корпус (5 Circuits) (Female Housing (5 Circuits))

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Male Клемма Корпус (6 Circuits) (Male Terminal Housing (6 Circuits))

Male Lock (3 Circuits) (Male Lock (3 Circuits))

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Male Клемма Корпус (4 Circuits) (Male Terminal Housing (4 Circuits))

Female Клемма Корпус (3 Circ.) (Female Terminal Housing (3 Circ.))

Female Клемма Корпус (6 Circ.) (Female Terminal Housing (6 Circ.))

(Male) Secondary Lock (3 Circuits) (Deutsch) ((Male) Secondary Lock (3 Circuits) (Deutsch))

Male Lock (4 Circuits) (Male Lock (4 Circuits))

(Female) Secondary Lock (3 Circuits) (Deutsch) ((Female) Secondary Lock (3 Circuits) (Deutsch))

(Female) Secondary Lock (6 Circuits) (Deutsch) ((Female) Secondary Lock (6 Circuits) (Deutsch))

Заглушка (Plug)

Female Клемма (Female Terminal)

(последний код) Female Клемма (Female Terminal)

Vinyl Трубопровод (low температура) (Vinyl Tubing (low Temperature))

Tie-Rap 130 mm (Tie-Rap 130 mm)

Female Клемма (Female Terminal)

Female Клемма Корпус (4 Circ.) (Female Terminal Housing (4 Circ.))

Провод Сальник (Wire Seal)

Колпачок (Cap)

Female Клемма (Female Terminal)

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Male Клемма Корпус (1 Circuit) (Male Terminal Housing (1 Circuit))

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Провод Сальник (Wire Seal)

Провод Сальник (Wire Seal)

Трубопровод 6 mm (Tubing 6 mm)

(последний код) Трубопровод 6 mm (Tubing 6 mm)

Трубопровод 9 mm (Tubing 9 mm)

Трубопровод (Tubing)

(последний код) Трубопровод (Tubing)

Трубопровод (Tubing)

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Сальник (Seal)

Insulated Sheath (Insulated Sheath)

(последний код) Insulated Sheath (Insulated Sheath)

Insulated Sheet (Insulated Sheet)

Insulated Sheet (Insulated Sheet)

(последний код) Insulated Sheet (Insulated Sheet)

Male Клемма Корпус (5 Circuits) (Male Terminal Housing (5 Circuits))

Female Клемма Корпус (3 Circ.) (Female Terminal Housing (3 Circ.))

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Female Клемма (Female Terminal)

Защита Трубка 4 mm (Protector Tube 4 mm)

Female Корпус (2 Circuits) (Female Housing (2 Circuits))

Male Клемма (Male Terminal)

Tab Корпус (3 Circuits) (Tab Housing (3 Circuits))

Заглушка (Plug)

Female Корпус (24 Circuits) (Female Housing (24 Circuits))

Фиксатор Block (24 Circuits) (Retainer Block (24 Circuits))

Провод Сальник (24 Circuits) (Wire Seal (24 Circuits))

Female Lock (24 Circuits) (Female Lock (24 Circuits))

Female Клемма (Female Terminal)

Female Клемма Корпус (24 Circ.) (Female Terminal Housing (24 Circ.))

Female Клемма (Female Terminal)

Male Корпус (6 Circuits) (Male Housing (6 Circuits))

Shrink Трубопровод (Shrink Tubing)

Shrink Трубопровод (Shrink Tubing)

Провод Сальник (Wire Seal)

Male Корпус (2 Circuits) (Male Housing (2 Circuits))

Shrink Трубопровод (Shrink Tubing)
